LILITH BY XTR (2021)

TECHNICAL SCHEDULE

Donor Bike : Royal Enfield Continental GT  650 (2019)

Modified subframe

XTR  Solo/Dual seat   (XTR design)

XTR upholstered

XTR rear light

XTR  led blinkers

XTR licence plate support

YSS regulables  rear schocks

Turbokit Megaphones

Shortened exhaust lines

CNC RIGA aluminium cnc machined  chain tensioner

K Speed  footpegs and supports

17 inches alluminium rims

CONTINENTAL   Road Attack  tires  120/70 – 17  forward  and 150 /60 -17 rear

CNC RIGA  aluminium cnc machined pinion cover.

REGINA GOLD chain

DNA air filter

DOMINO quick open gas throttle

DOMINO right commando

XTR cnc machined  bar end  clipo ons

XTR Clip ons

CNC RIGA aluminium cnc machined and   lightened upper  yoke

RR  oil temperature gauge

XTR front fairing and windshield

XTR front  fairing bracket

XTR new clutch cable

GSXR  clutch lever support

XTR  alluminium cnc machined regulable  brake and clutch levers

BREMBO Gold front brake pump

XTR endurance lights

XTR alluminium  endurance light brackets

HIGHSIDE  mirrors

Modified front fender and support

XTR  glass fiber fuel tank with fuel level stripe . Design and fabrication by XTR

ACC  Endurance alluminium cnc machined endurance gas cap .

FULBAT LIPO battery

ARTENRUTA painting

PICTURES by Belen Piqueras

DETAILS PICTURES by David TRAZANDO FINO

24 horas project , Montjuich livery. Render by @vector_garage

IMATRA BY XTR (2021)

TECHNICAL SCHEDULE

Donor Bike  : Honda XBR 500 1990

Modified frame

Hagon rear schocks

XTR Front bracket

Aprilia RS 125  upsidedown fork

Tomaselli clip ons

Derbi hub

Excel rims

NG front brake rotor

Frentubo brake line

Brembo radial brake caliper

Brembo front brake pump

Koso rev counter

XTR carbon fiber front mudguard

XTR  regulable  cnc machined footrest

Mash Five hundred rear hub and drum brake

XTR  fairing (xtr design)

Yamaha TZ 250 modified  fuel tank

Yamaha TZ 125 modified rear cowl

XTR upholstery

Engine:

Overboring to 600 cc with Wiseco high comp piston

Honda XL 600 crankshaft

Honda XBR 500 gearbox

Eliminated magneto (runs with loosing LIPO battery)

Magnesium Honda XR 600 left crank cover

Kickstart  , eliminated electric starter and gears

Reprofilated  XBR camshaft to HRC sound of Single  specifications.

Ported heads

FCR 39 carburator with hand made  intake

Oil cooler

PINTUMOTO painting

Pictures :  Sergio Cardeña  (@conotroenfoque)

SPORT 440 by XTR (2020)



My every day bike for go in the Madrid Streets



TECHNICAL SCHEDULE



Donor Bike : SWM  Gran Turismo  (2017)



SWM six days fuel tank.



SWM six days seat.



MASH led rear light.



MASH TT40 footrests.



MASH front light.



XTR clip ons.



XTR front mudguard.



Derbi senda front and rear 17 inches alluminium rimes.



Bridgestone soft compound tyres.



Wolfman 2 in 1  exhaust system with modified SWM megaphone.



Rizoma nex front brake reservoir.



Pintumoto painting.



Pictures : David Perse Trazandofino.



SPONSORED by SWM MADRID (Heros 66)



























MONTY in JARAMA circuit , pictures by Trazando Fino











Some design proposals for make a  BMW racer with a R100 R   . Design by XTR , renders by VECTOR GARAGE..

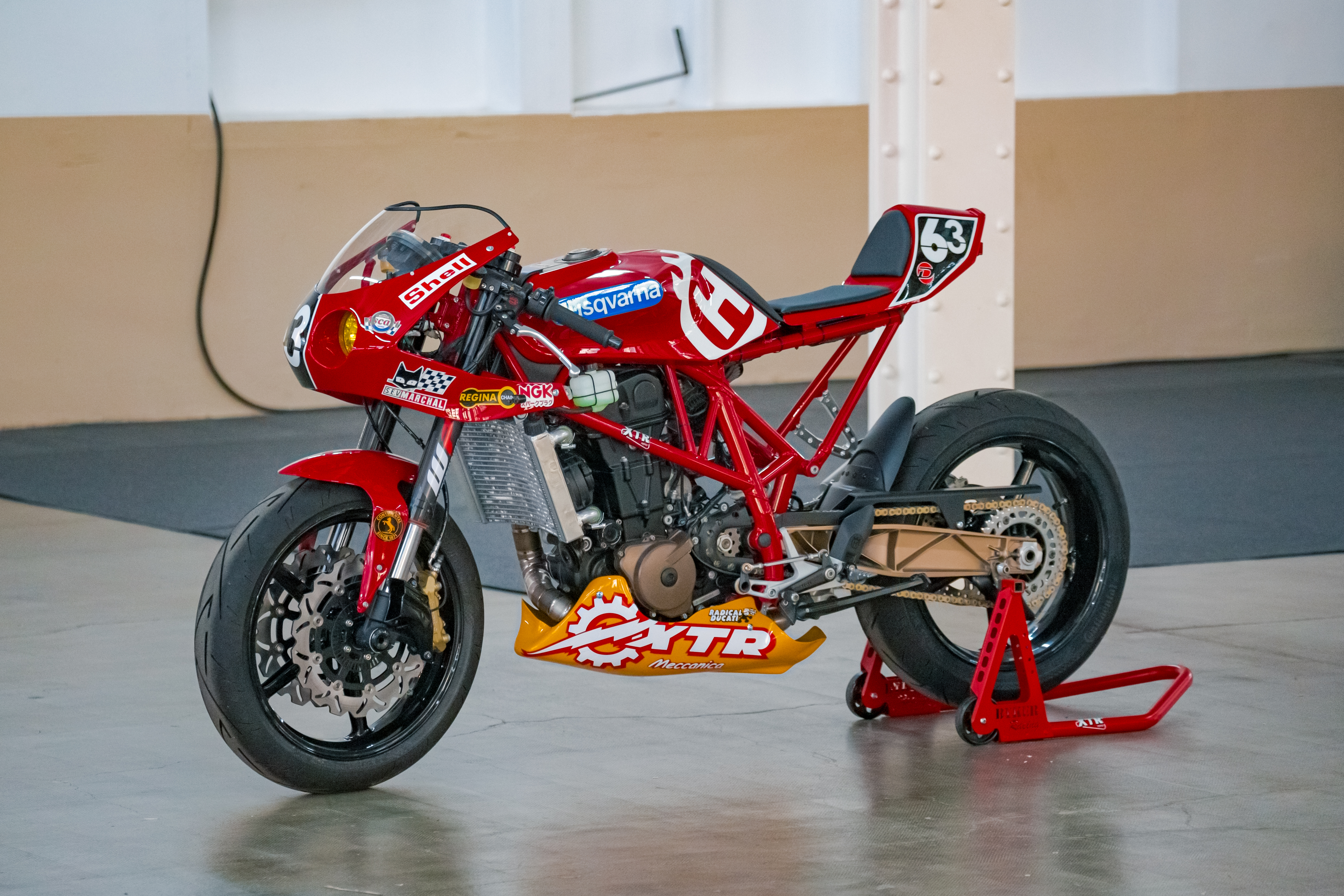

MONZA by XTR  (2019)



TECHNICAL SCHEDULE



Donor Bike : Moto Morini Corsaro Veloce 1200 (2009)



SP  aluminium cnc machined  4 clamps yokes



FG Racing   regulable aluminium cnc machined clipons



XTR regulable and foldable aluminium  cnc machined brake and clutch levers



Frentubo  brake lines



Frentubo clutch line



XTR front bracket



Modified Suzuki RGV 250 front fairing



RC  Racing   wáter  radiator  hand made



XTR hand  made    metal shaping fuel tank



Fuchs workshop doublé gas cap  aluminium cmc machined.



XTR solo seat



LIPO battery



XTR REar subframe



Led rear  light



XTR front light



Repositioning of the electrical wiring



OEM aluminium cnc machined  pilot footrest



OEM head exhaust  system + Wolfman  2 in 1 tube



Spark megaphone



Pintumoto painting



Dante  stickers.



Pictures : Sergio Cardeña Diaz







SOMEWHERE IN GERMANY …..pictures by Marc Holstein









Video of the MONZA launch in HEROS 66 bike shop in Madrid . Video by @gasogeno98  .







IL PADRINO   in  THE REUNION 2018  sprint race   .





MONZA  official pictures are coming
