24 horas project , Montjuich livery. Render by @vector_garage

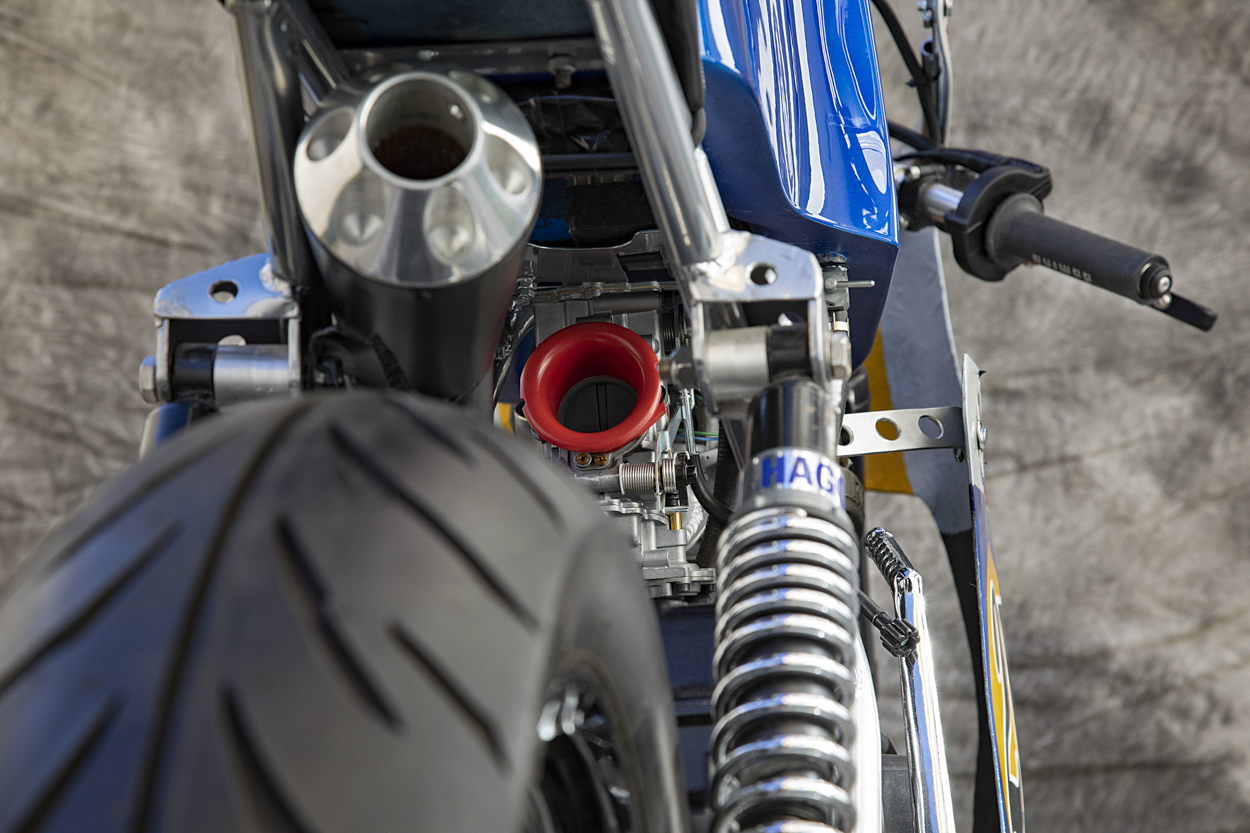

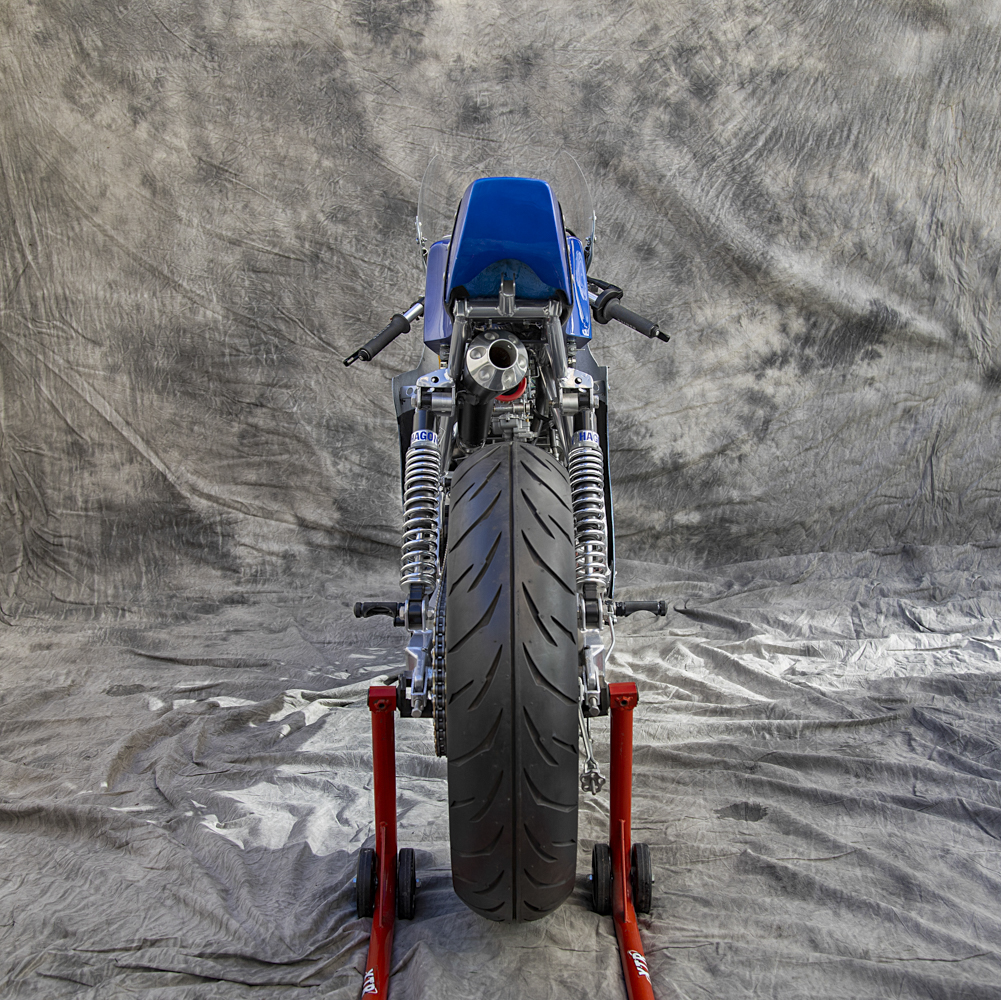

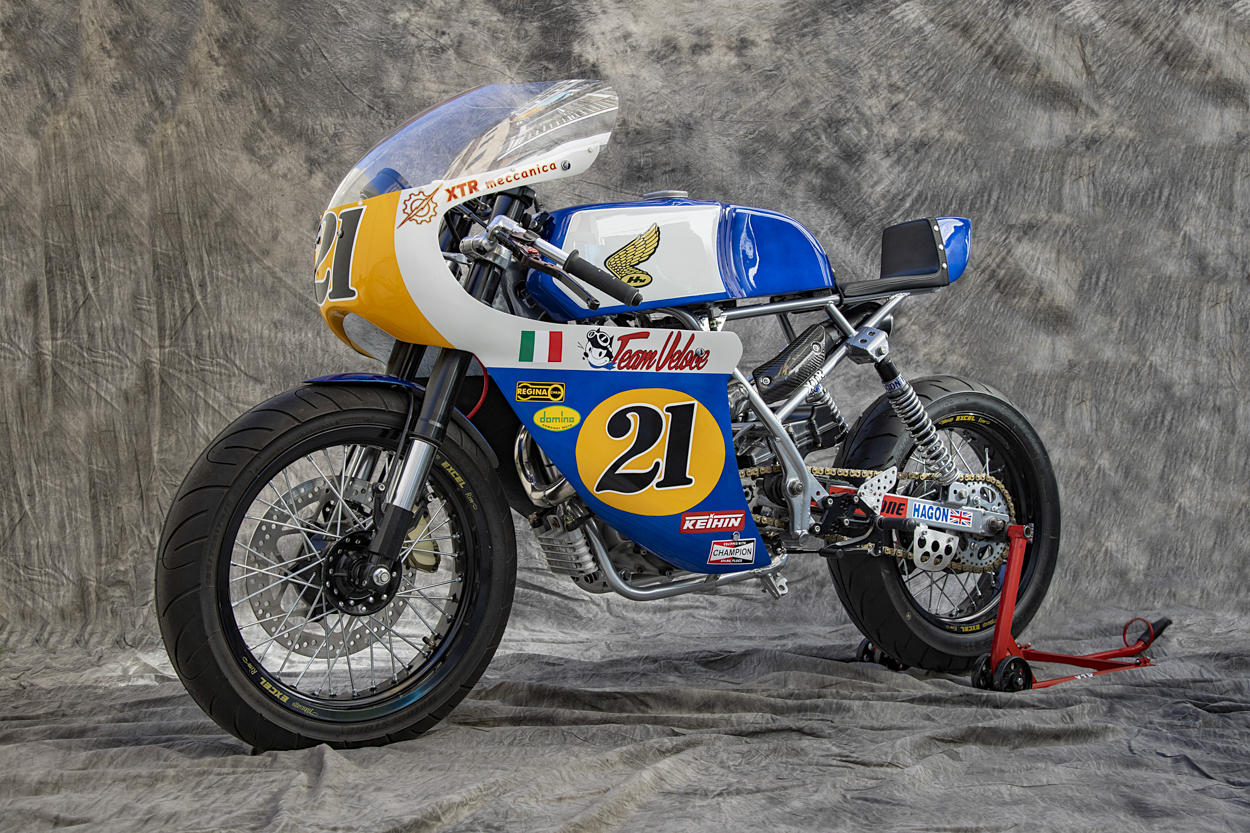

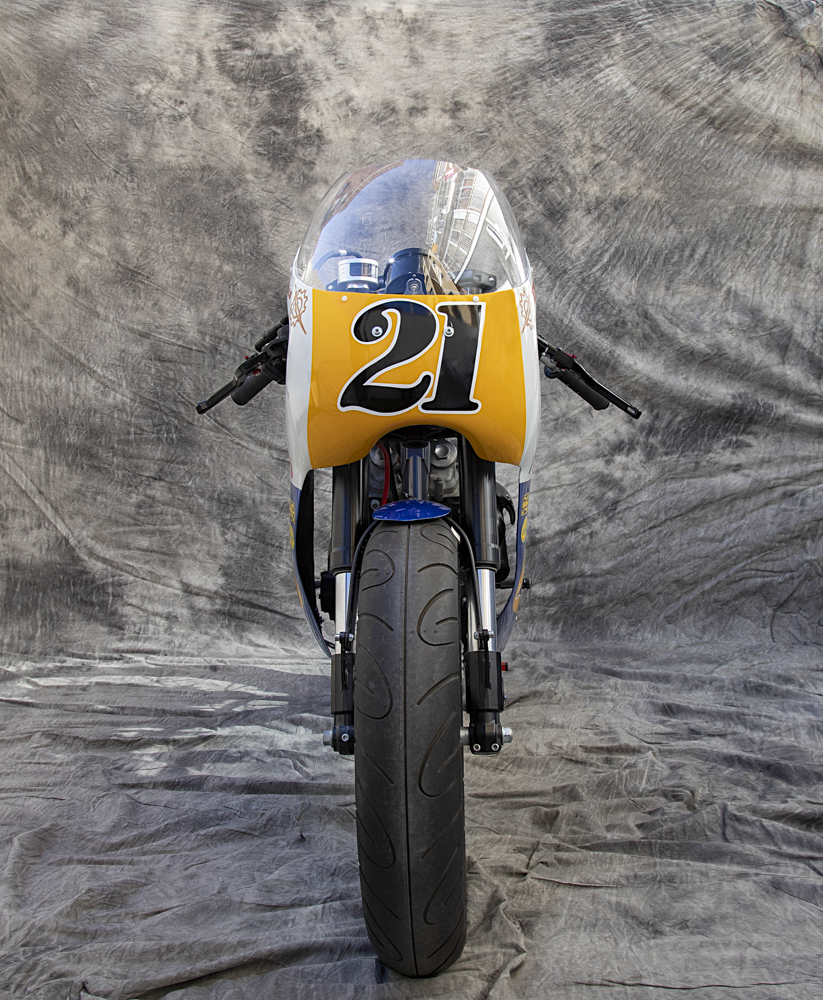

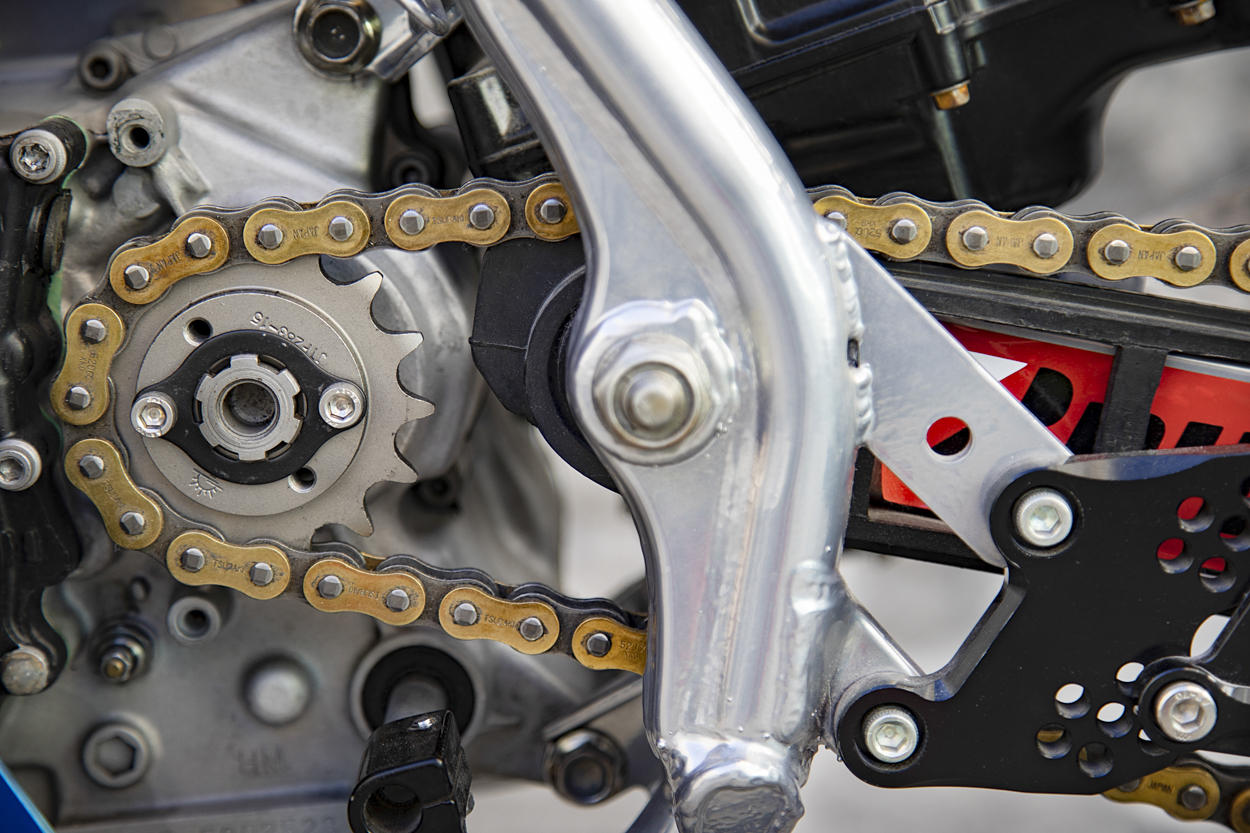

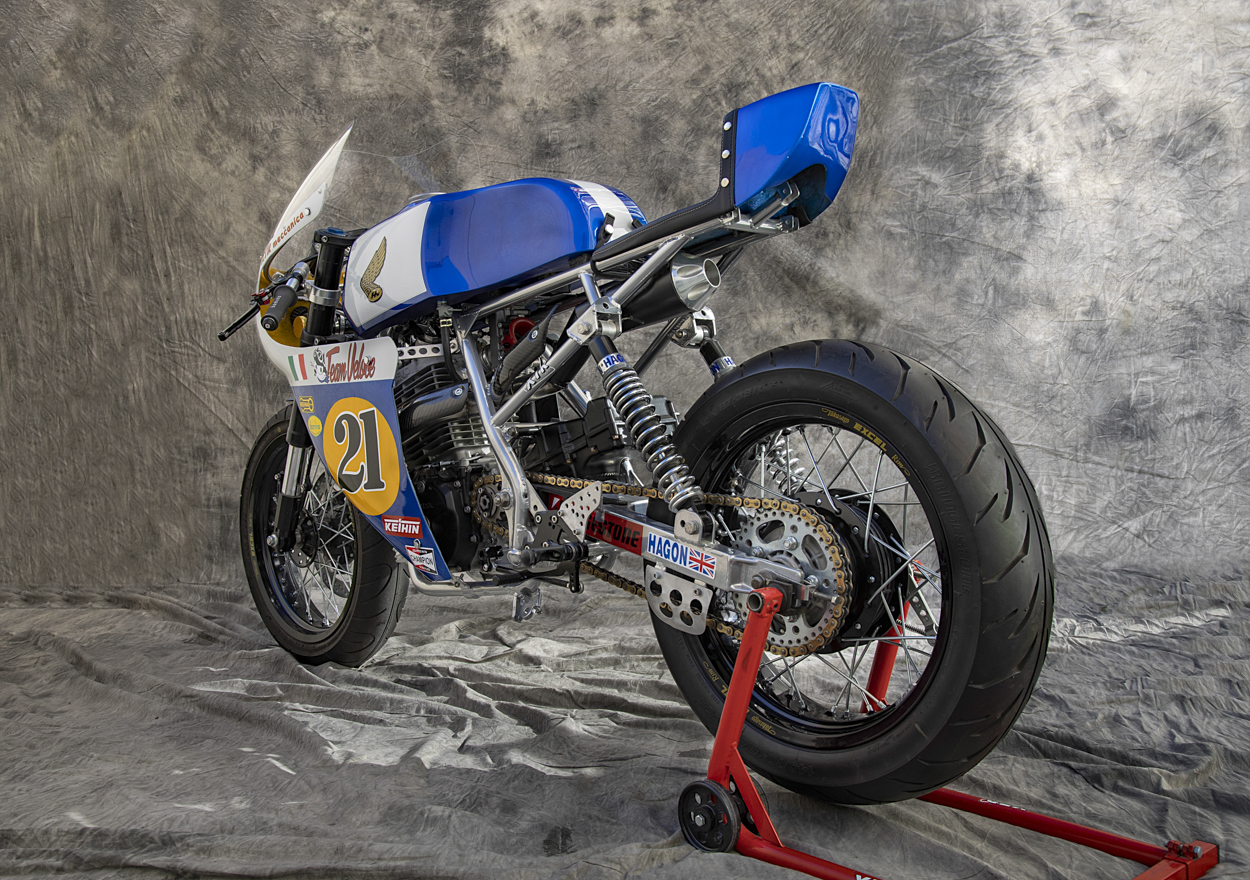

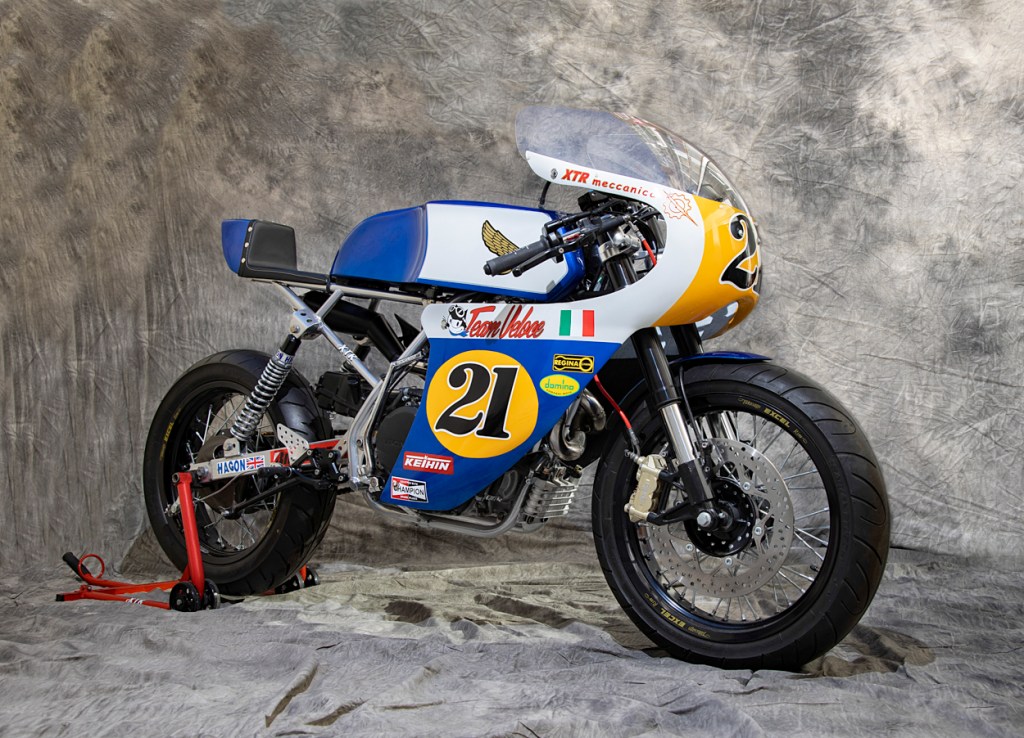

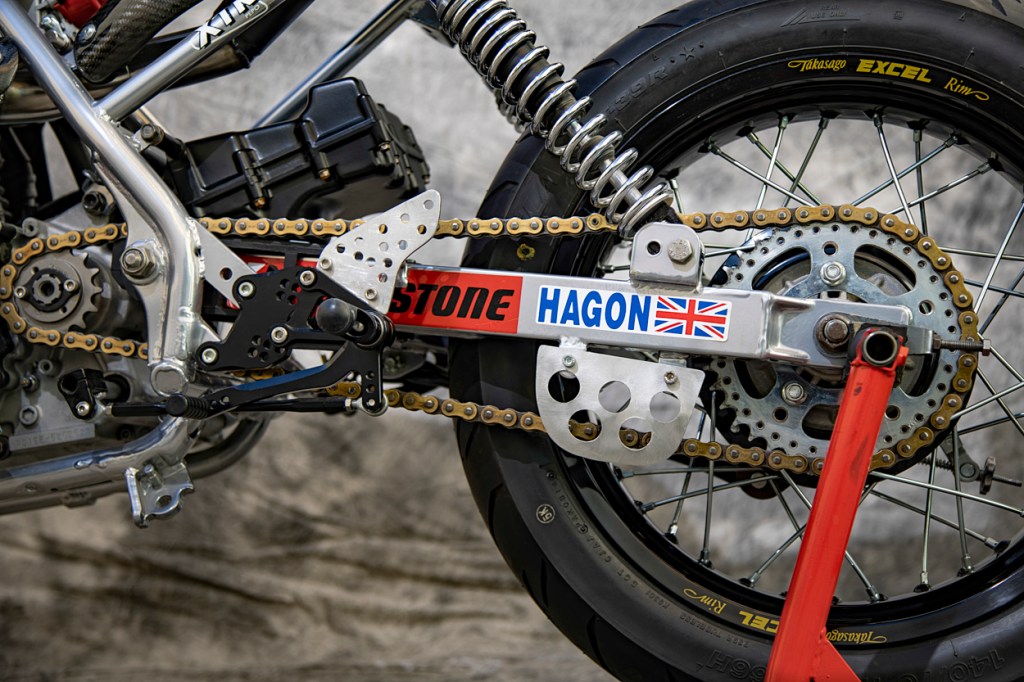

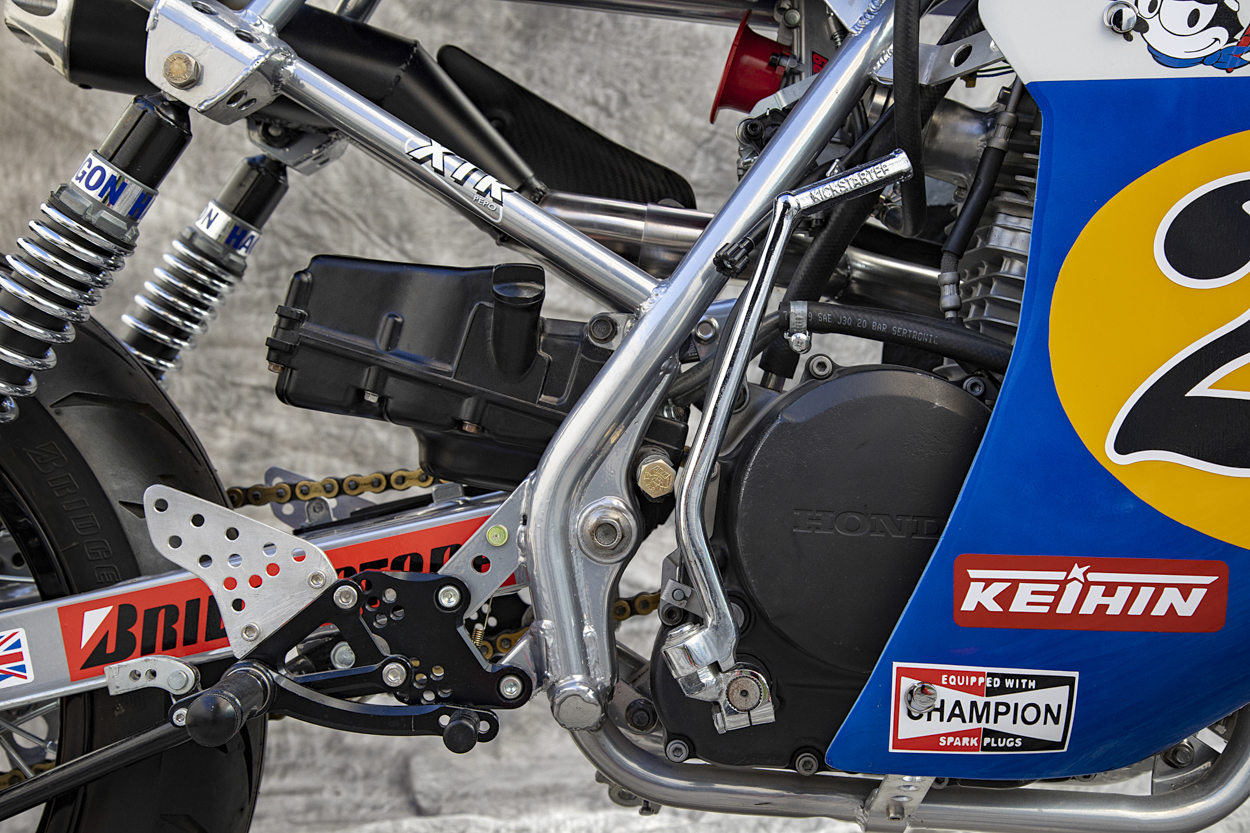

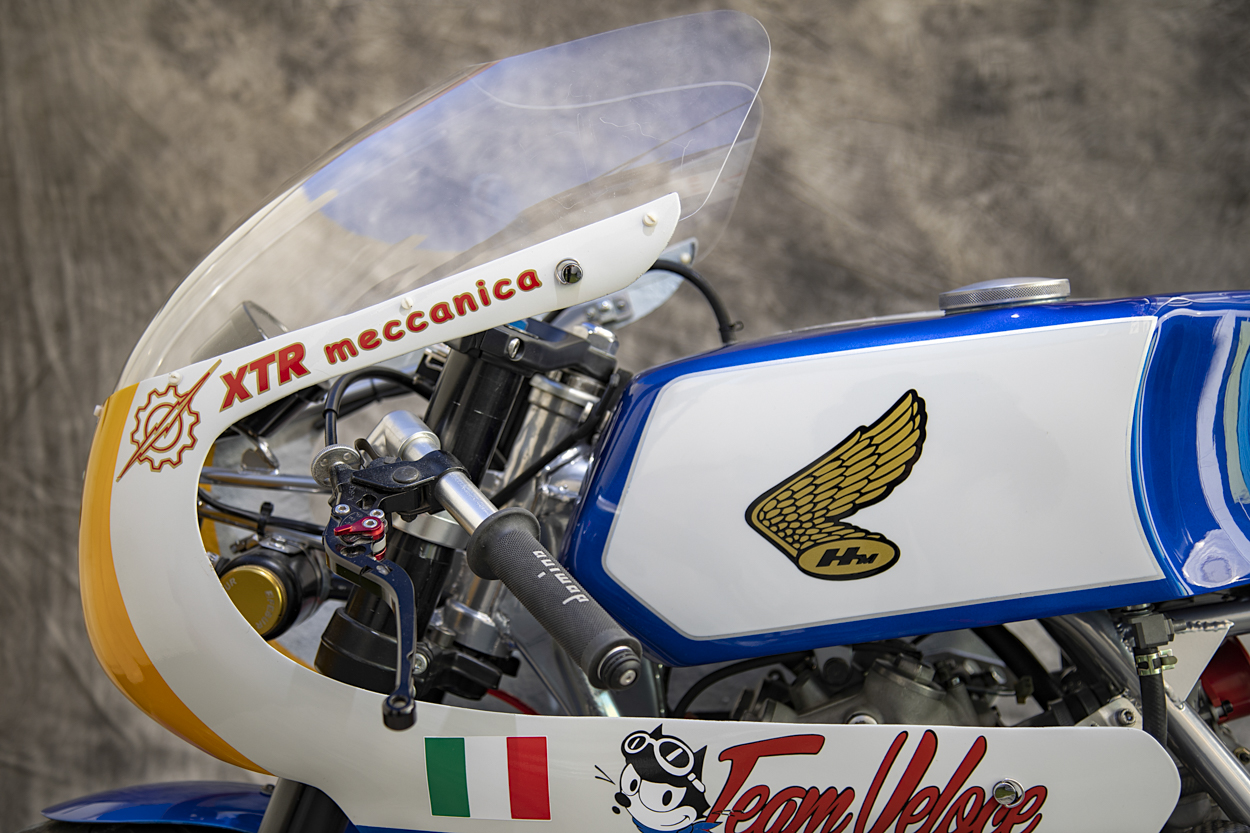

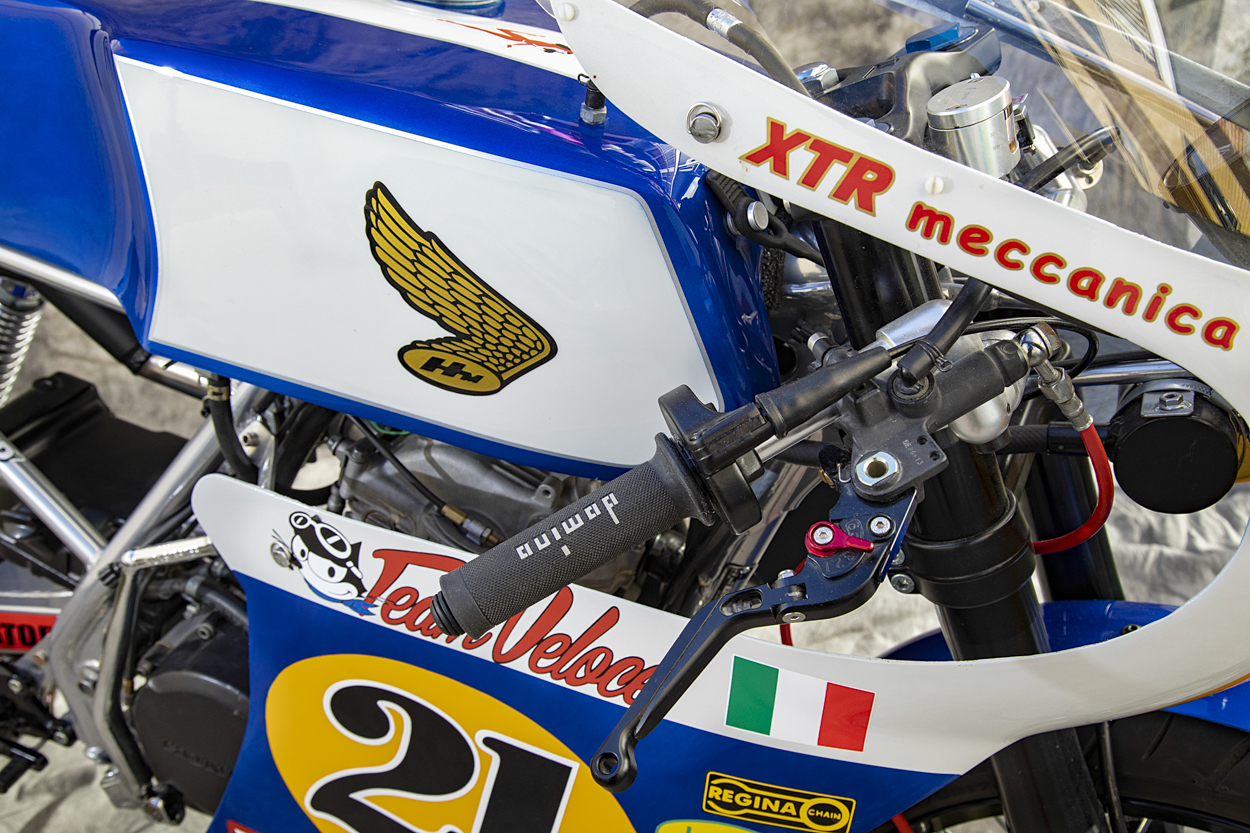

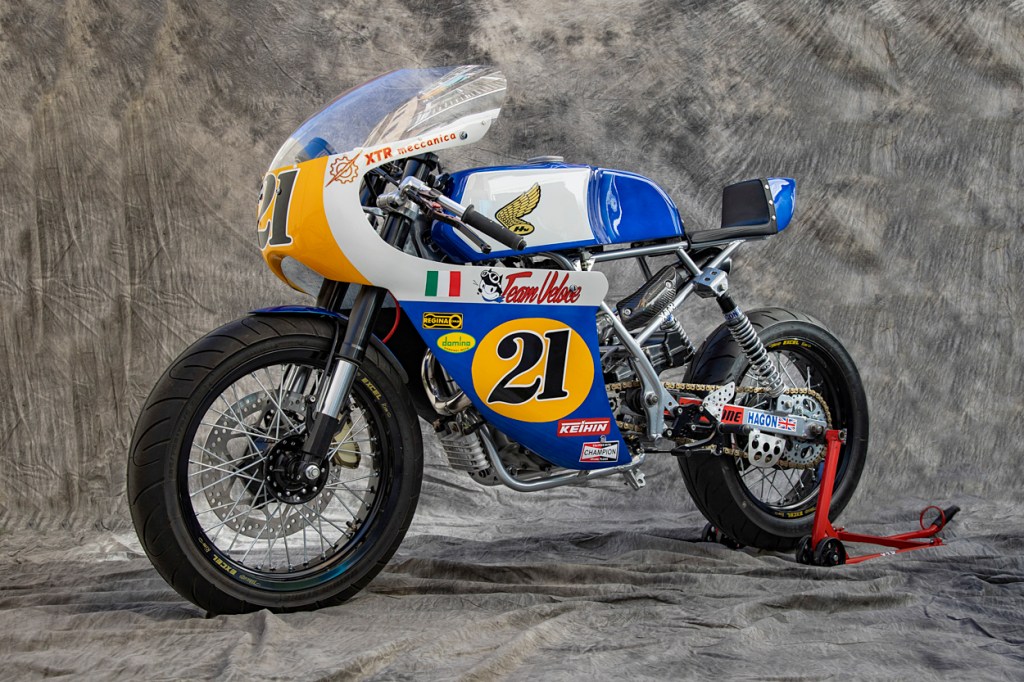

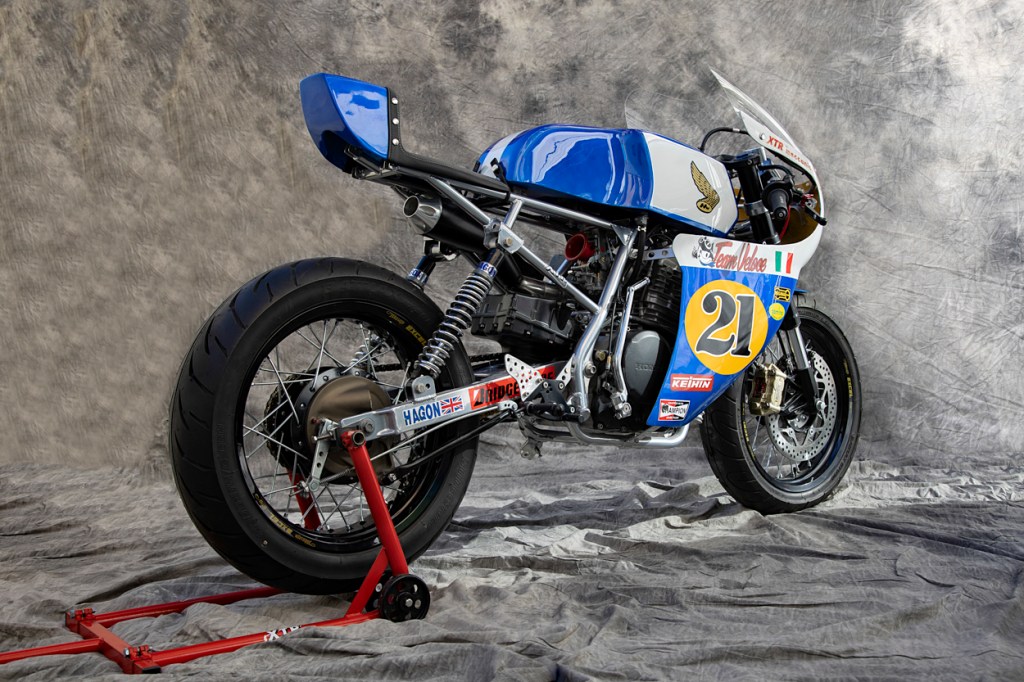

IMATRA BY XTR (2021)

TECHNICAL SCHEDULE

Donor Bike  : Honda XBR 500 1990

Modified frame

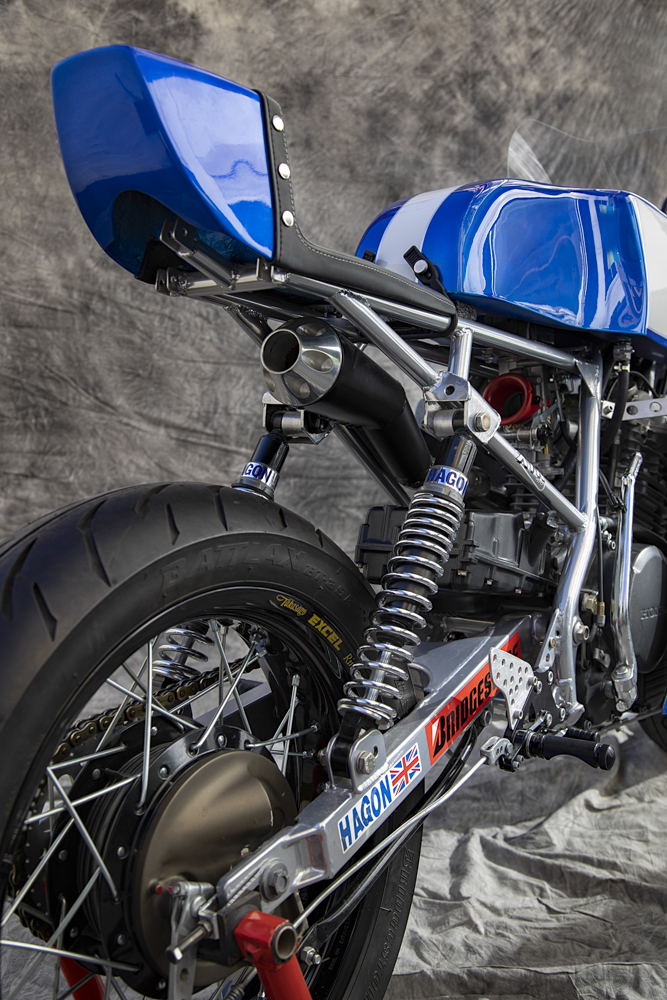

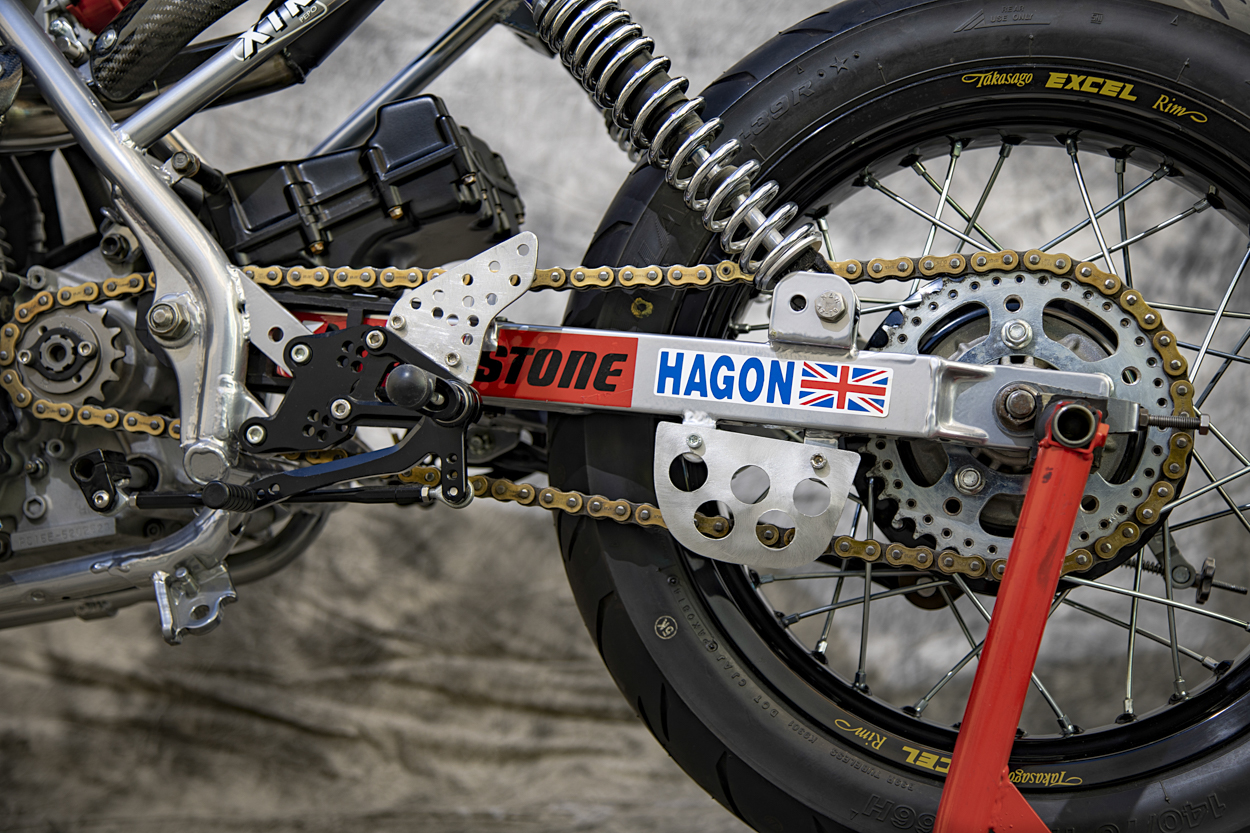

Hagon rear schocks

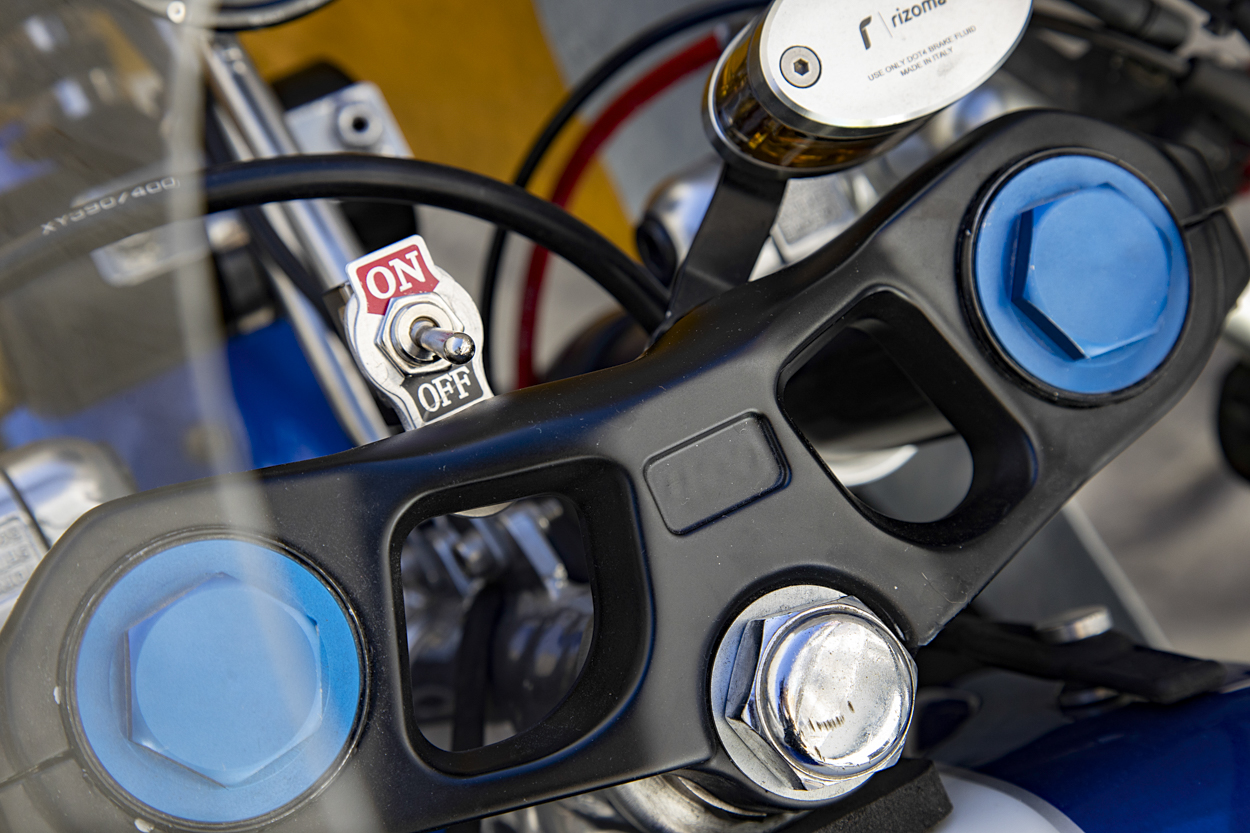

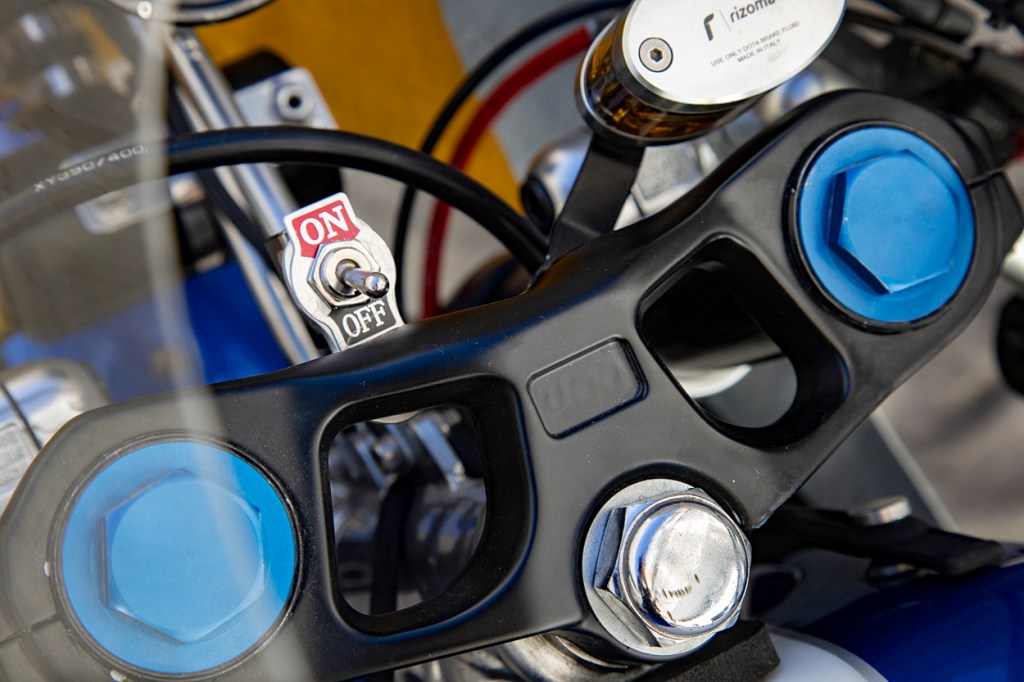

XTR Front bracket

Aprilia RS 125  upsidedown fork

Tomaselli clip ons

Derbi hub

Excel rims

NG front brake rotor

Frentubo brake line

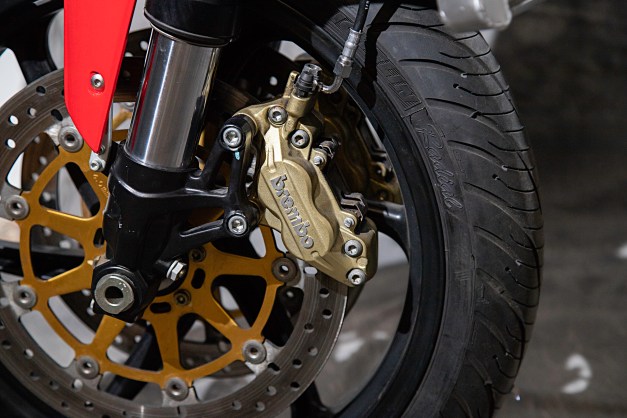

Brembo radial brake caliper

Brembo front brake pump

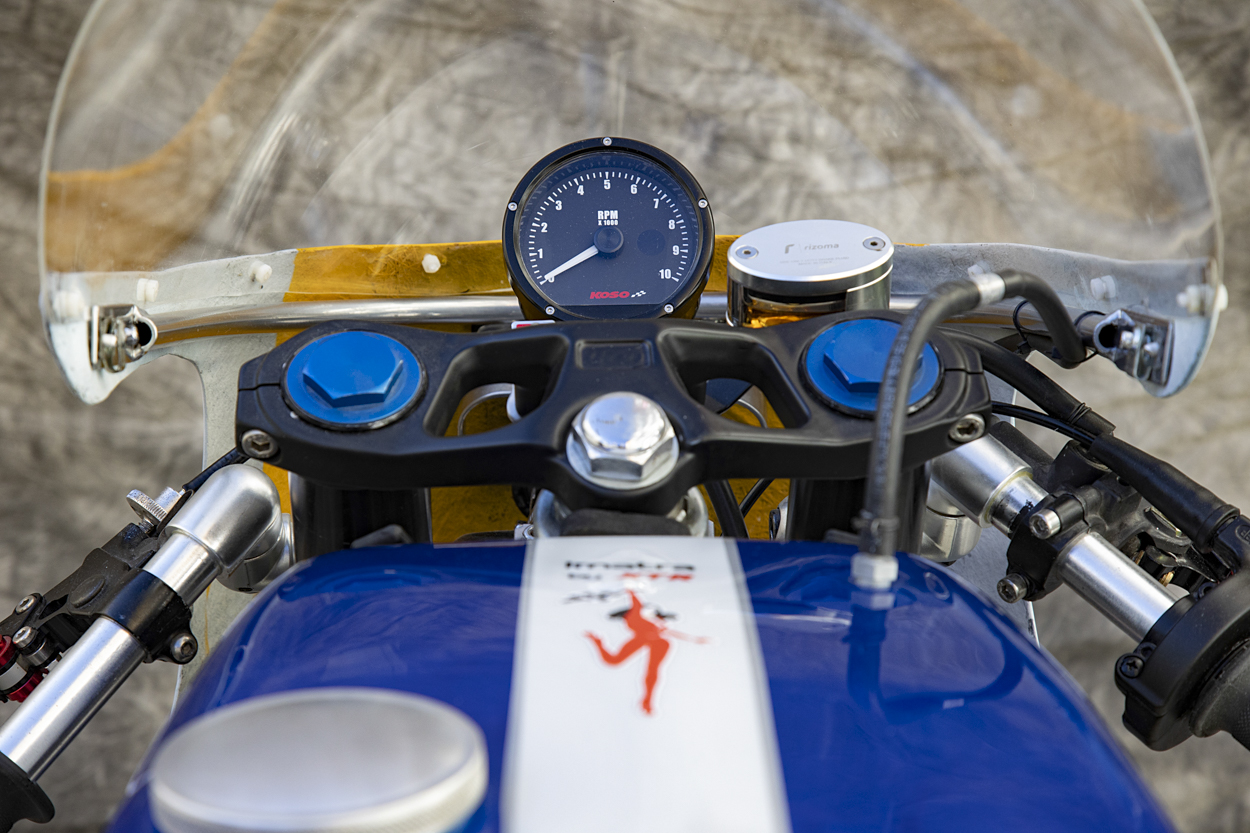

Koso rev counter

XTR carbon fiber front mudguard

XTR  regulable  cnc machined footrest

Mash Five hundred rear hub and drum brake

XTR  fairing (xtr design)

Yamaha TZ 250 modified  fuel tank

Yamaha TZ 125 modified rear cowl

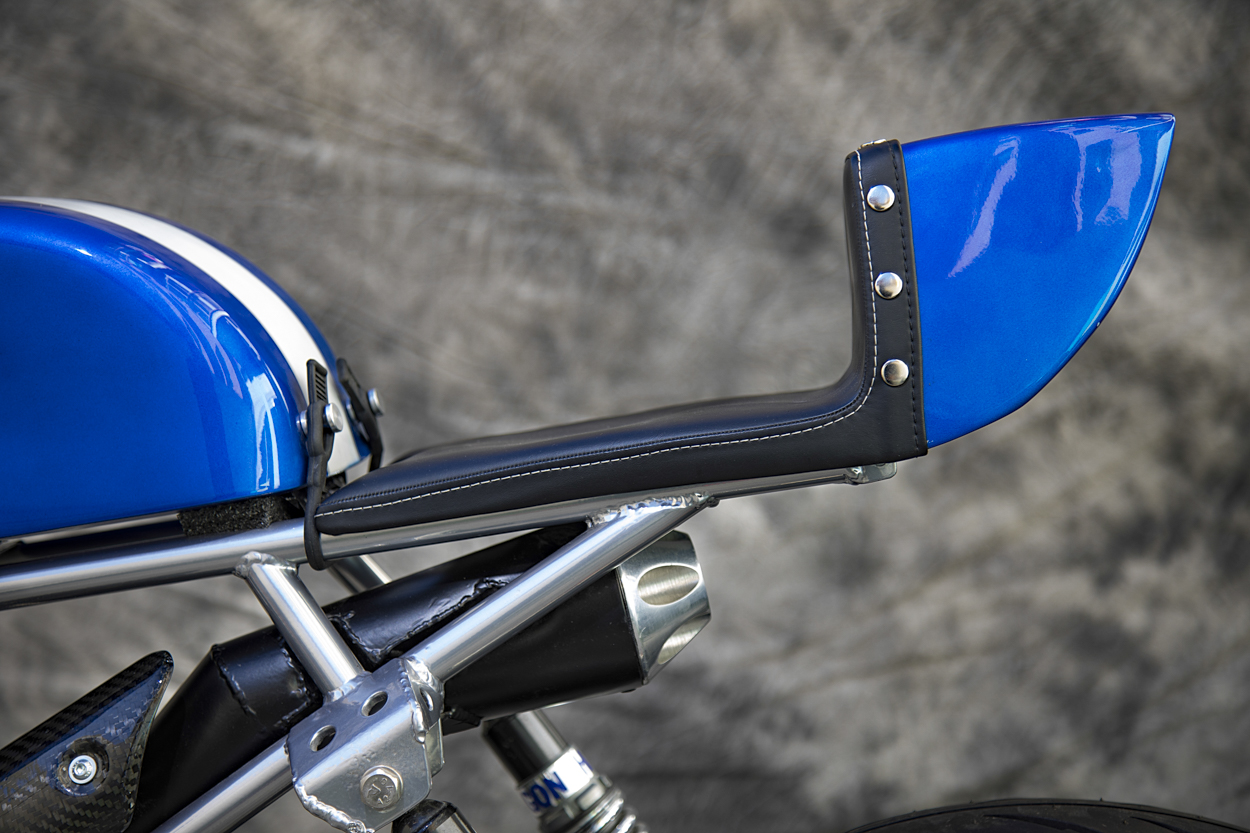

XTR upholstery

Engine:

Overboring to 600 cc with Wiseco high comp piston

Honda XL 600 crankshaft

Honda XBR 500 gearbox

Eliminated magneto (runs with loosing LIPO battery)

Magnesium Honda XR 600 left crank cover

Kickstart  , eliminated electric starter and gears

Reprofilated  XBR camshaft to HRC sound of Single  specifications.

Ported heads

FCR 39 carburator with hand made  intake

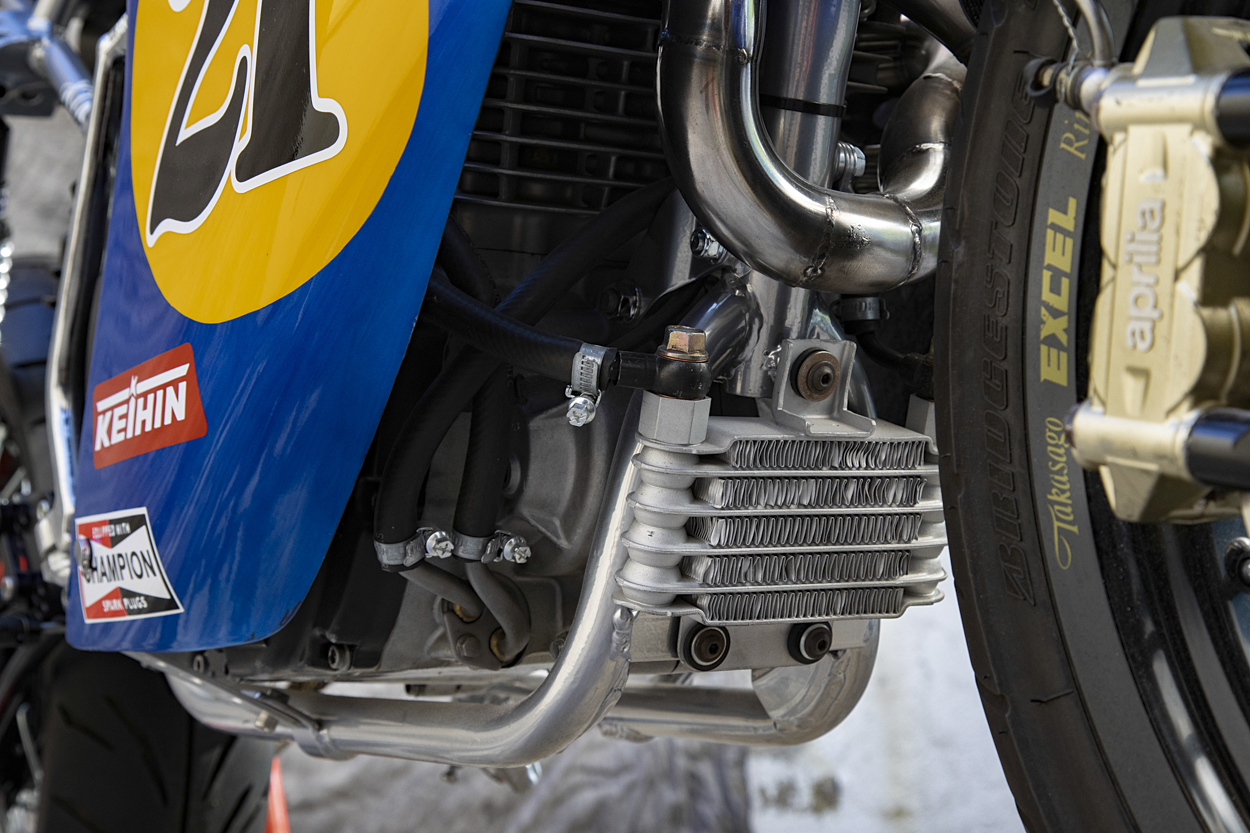

Oil cooler

PINTUMOTO painting

Pictures :  Sergio Cardeña  (@conotroenfoque)

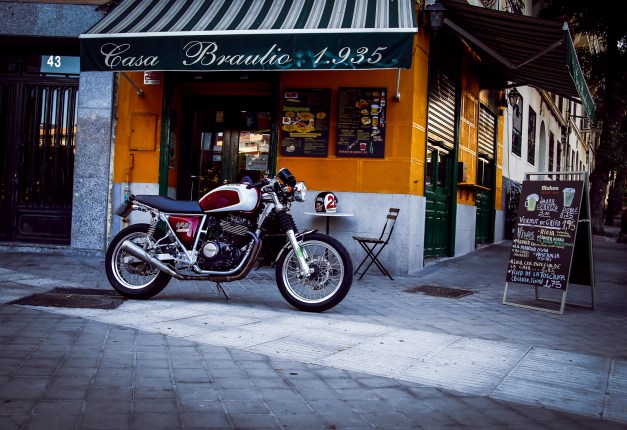

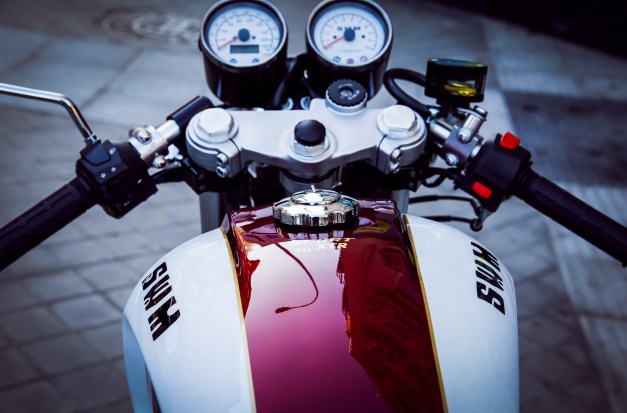

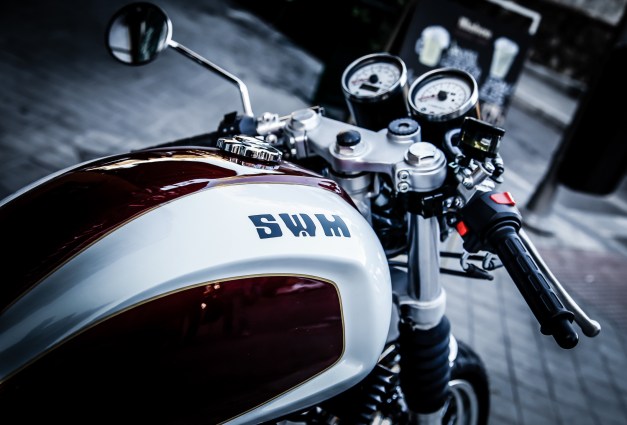

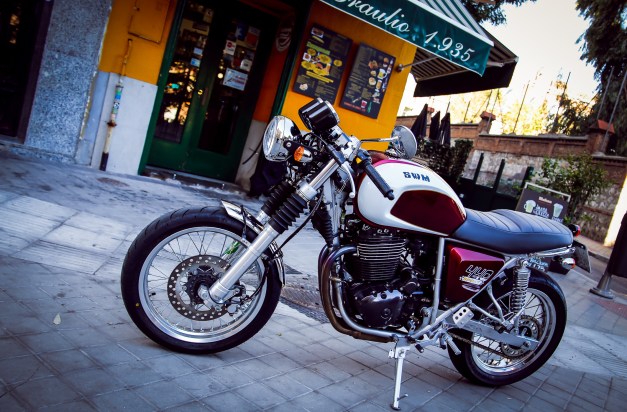

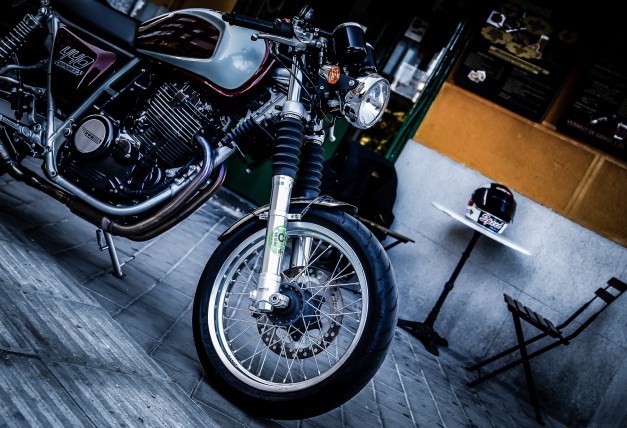

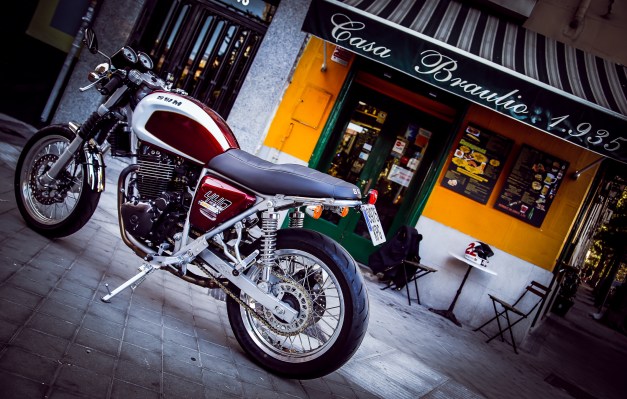

SPORT 440 by XTR (2020)



My every day bike for go in the Madrid Streets



TECHNICAL SCHEDULE



Donor Bike : SWM  Gran Turismo  (2017)



SWM six days fuel tank.

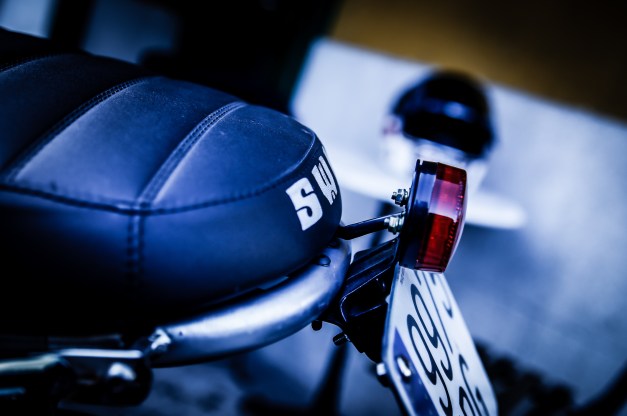

SWM six days seat.



MASH led rear light.



MASH TT40 footrests.



MASH front light.



XTR clip ons.



XTR front mudguard.



Derbi senda front and rear 17 inches alluminium rimes.



Bridgestone soft compound tyres.



Wolfman 2 in 1  exhaust system with modified SWM megaphone.



Rizoma nex front brake reservoir.



Pintumoto painting.



Pictures : David Perse Trazandofino.



SPONSORED by SWM MADRID (Heros 66)

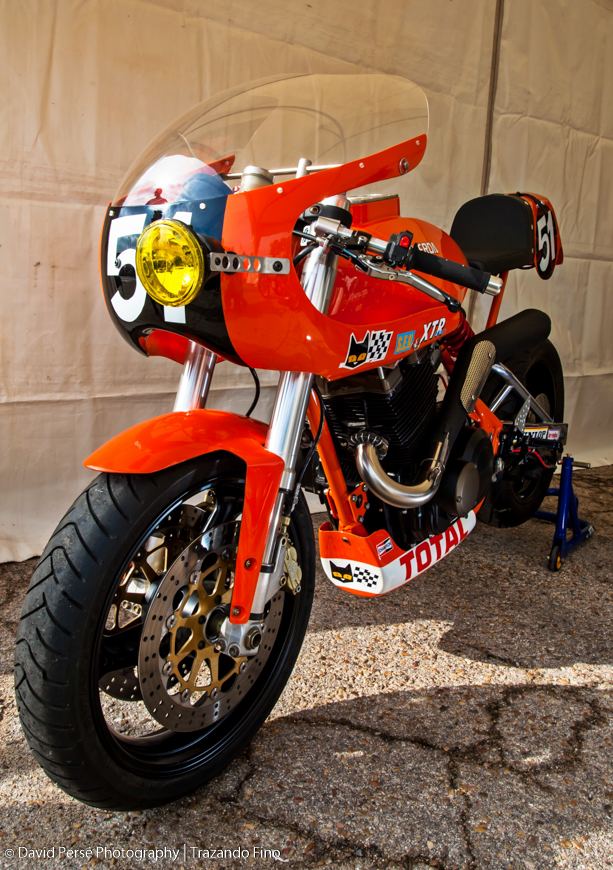

MONTY in JARAMA circuit , pictures by Trazando Fino

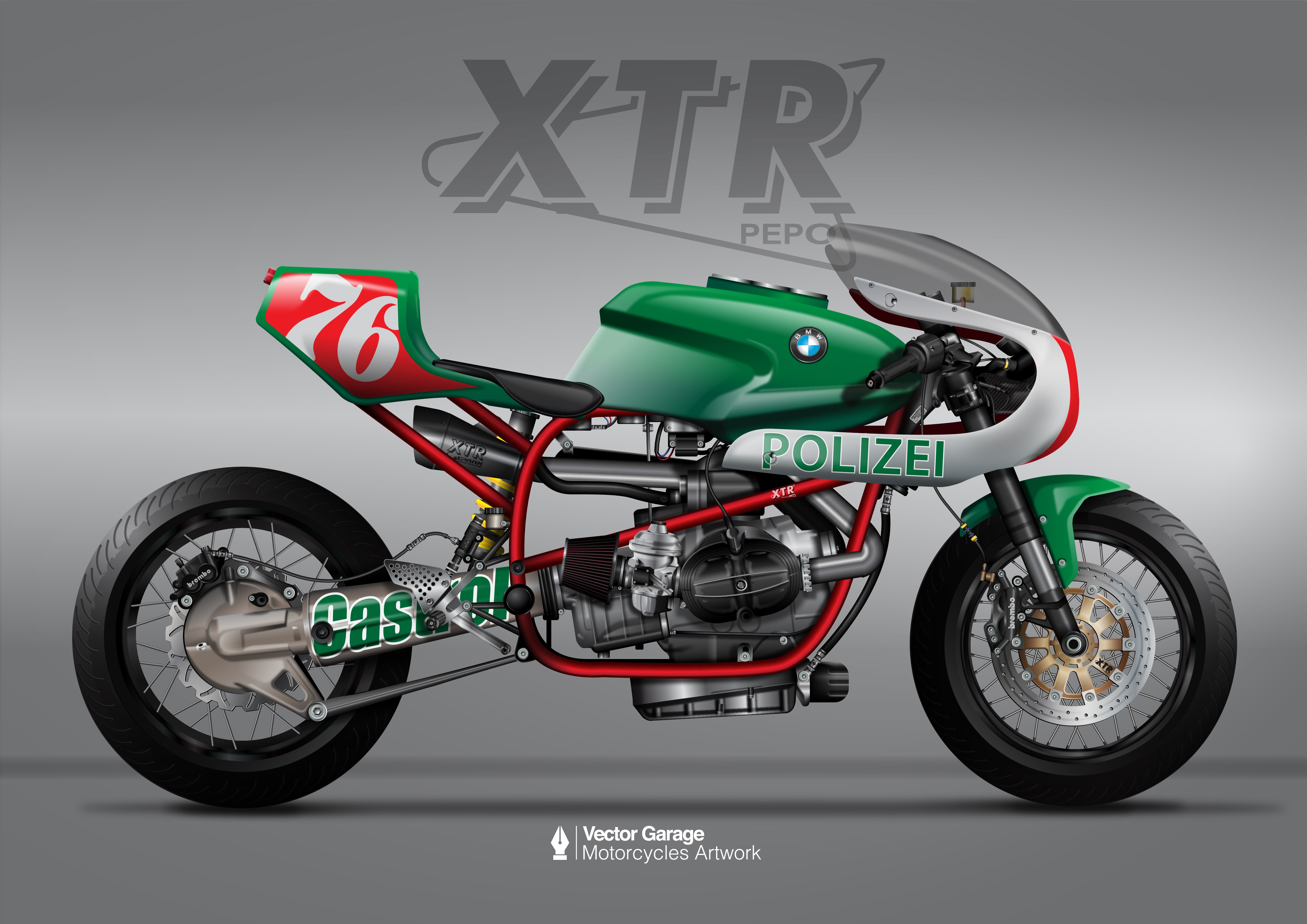

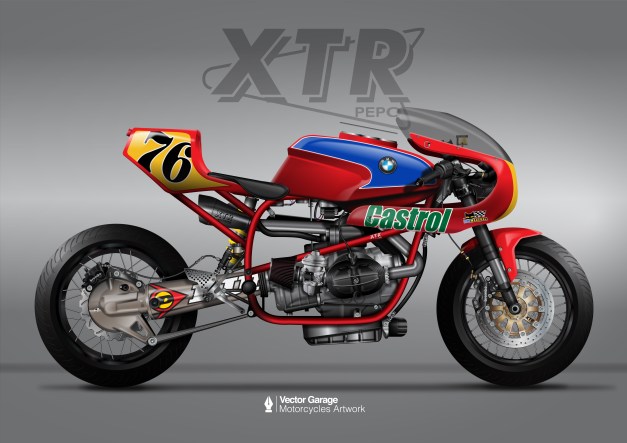

Some design proposals for make a  BMW racer with a R100 R   . Design by XTR , renders by VECTOR GARAGE..

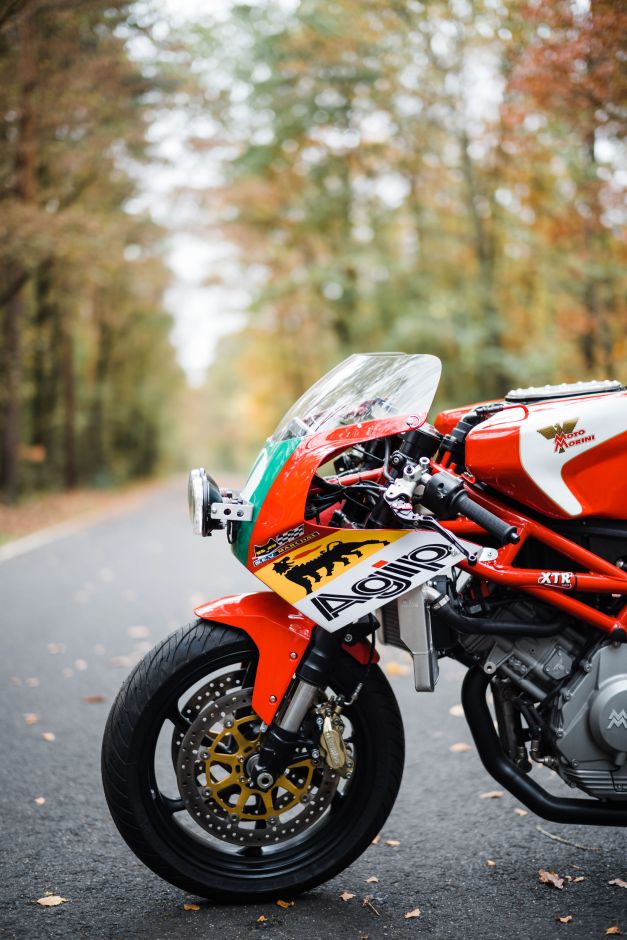

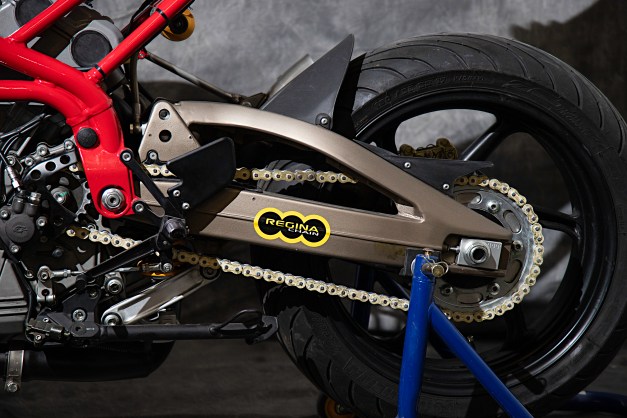

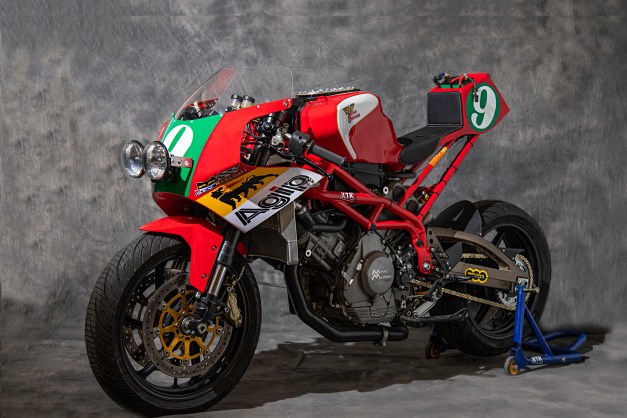

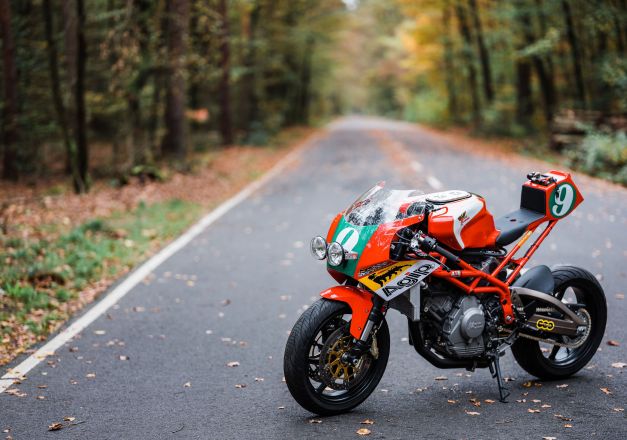

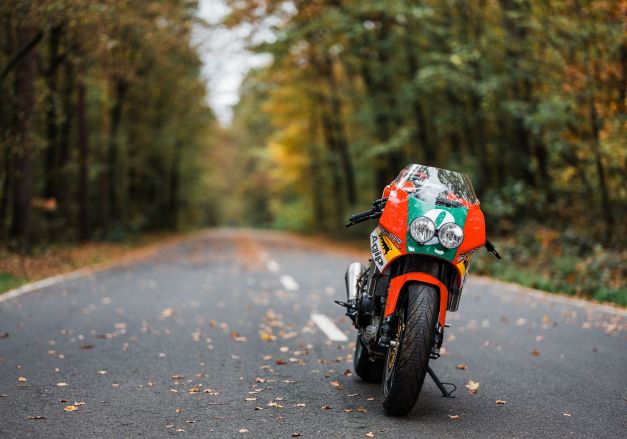

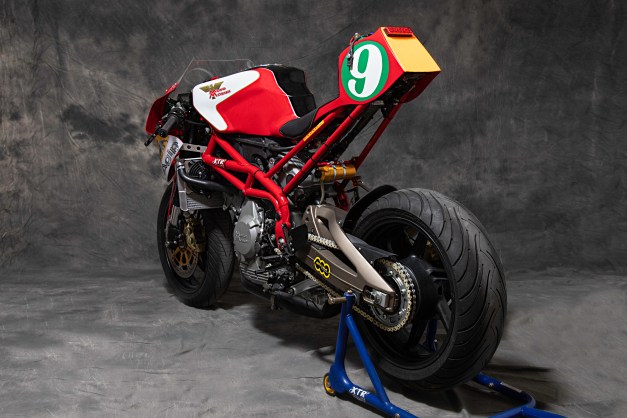

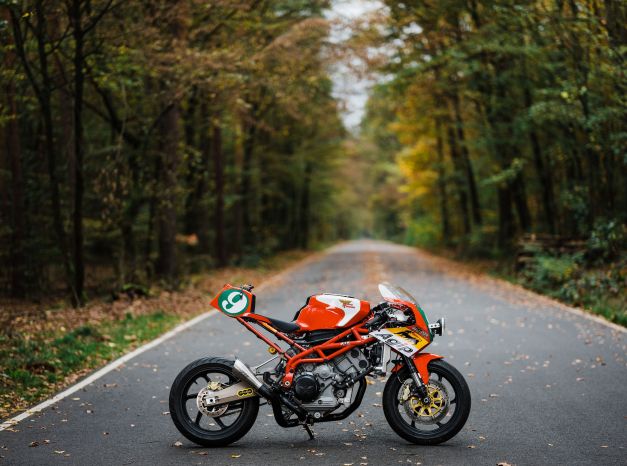

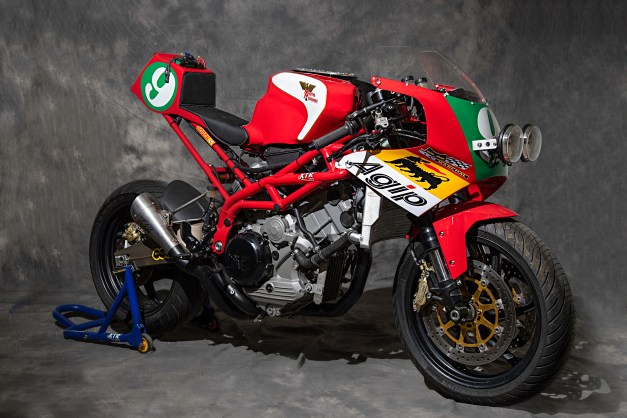

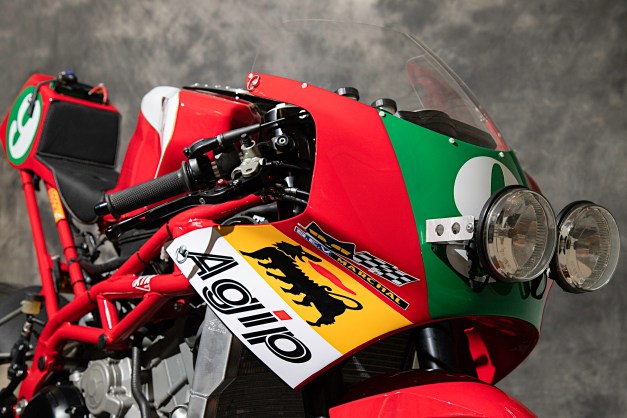

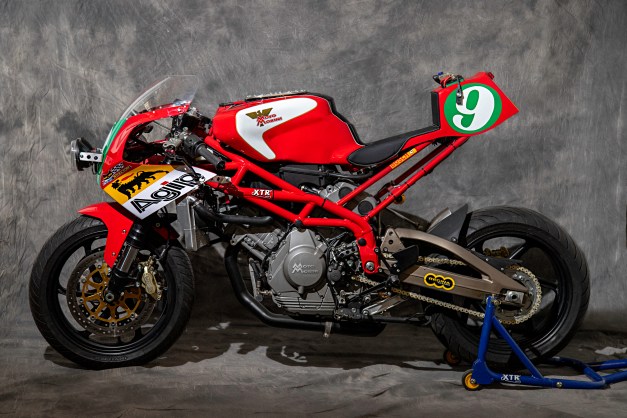

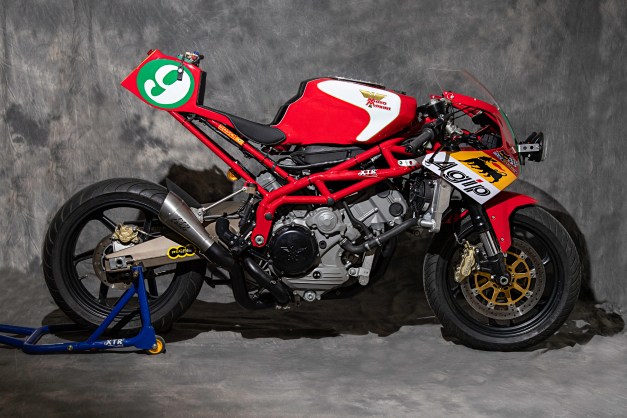

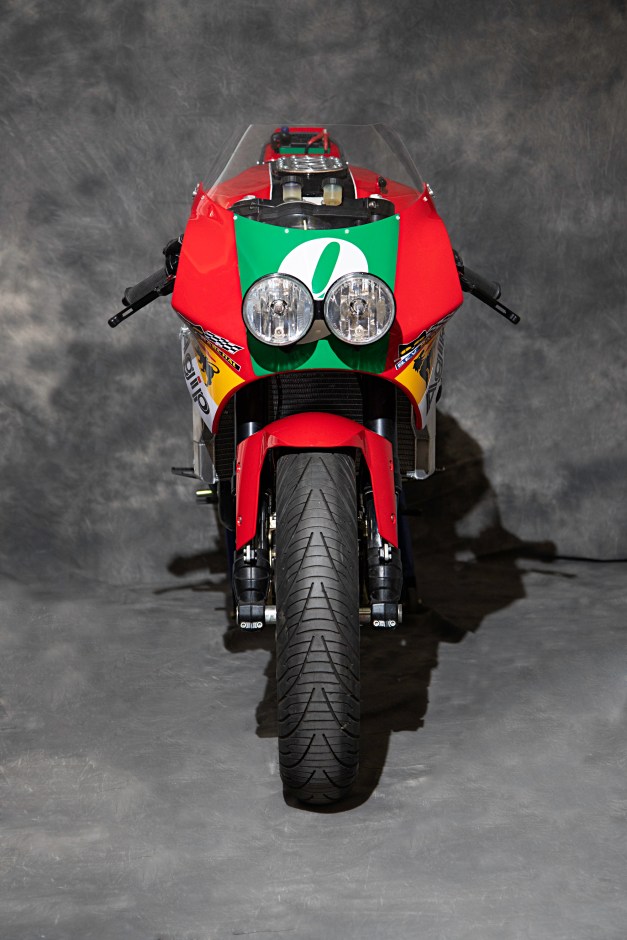

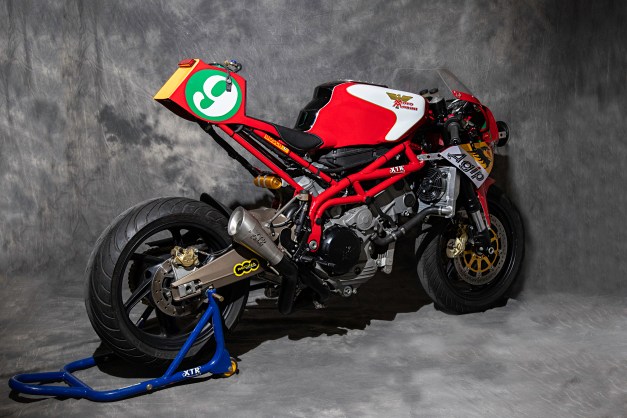

MONZA by XTR  (2019)



TECHNICAL SCHEDULE



Donor Bike : Moto Morini Corsaro Veloce 1200 (2009)

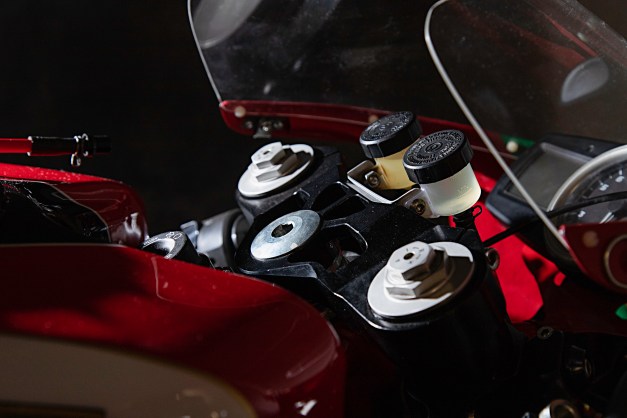

SP  aluminium cnc machined  4 clamps yokes



FG Racing   regulable aluminium cnc machined clipons

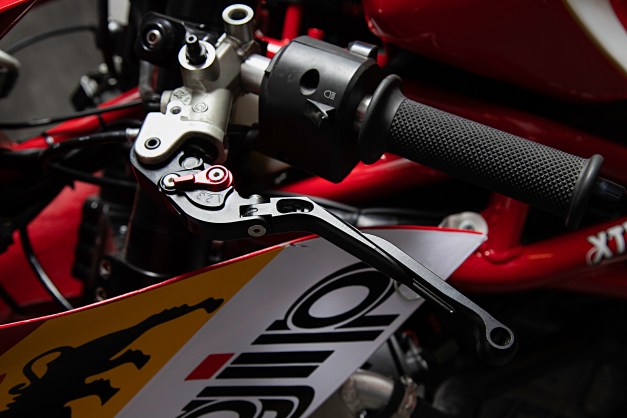

XTR regulable and foldable aluminium  cnc machined brake and clutch levers



Frentubo  brake lines



Frentubo clutch line



XTR front bracket

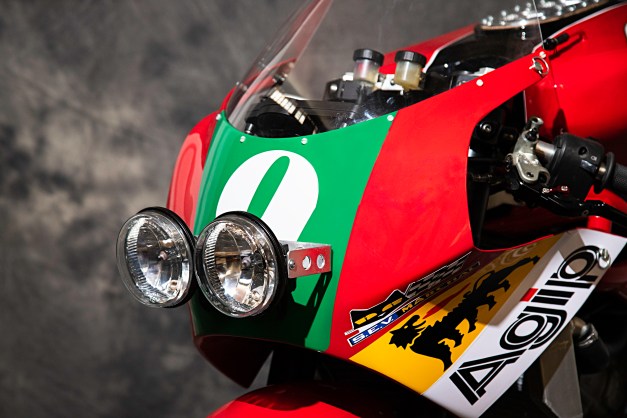

Modified Suzuki RGV 250 front fairing



RC  Racing   wáter  radiator  hand made

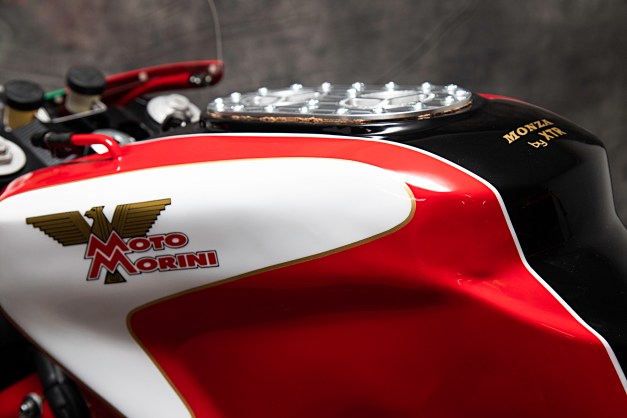

XTR hand  made    metal shaping fuel tank

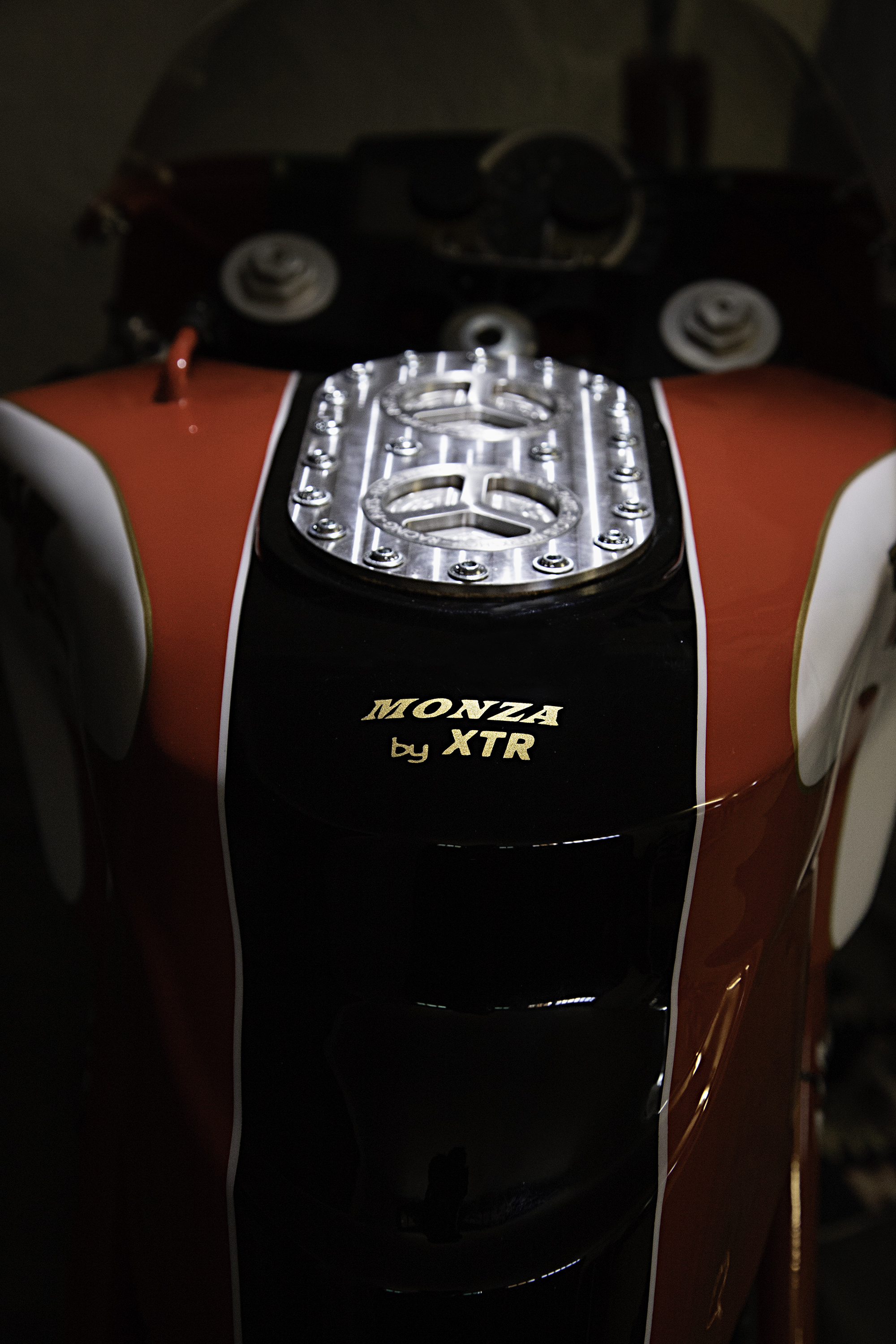

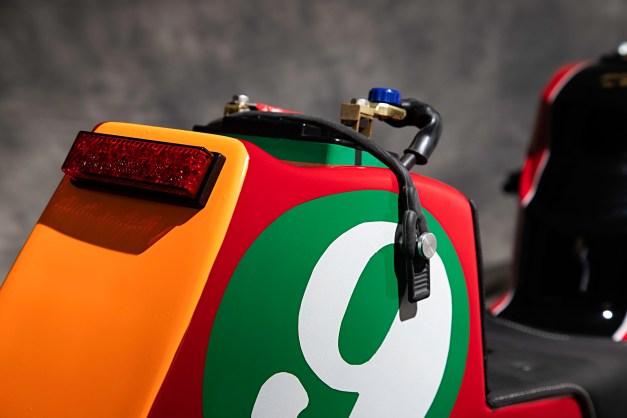

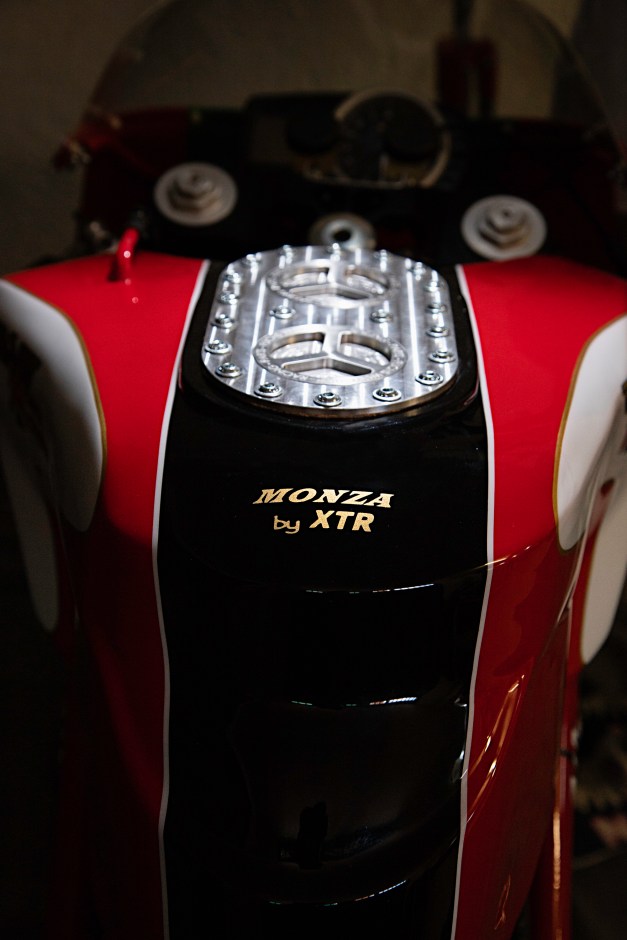

Fuchs workshop doublé gas cap  aluminium cmc machined.



XTR solo seat



LIPO battery



XTR REar subframe



Led rear  light



XTR front light



Repositioning of the electrical wiring



OEM aluminium cnc machined  pilot footrest



OEM head exhaust  system + Wolfman  2 in 1 tube

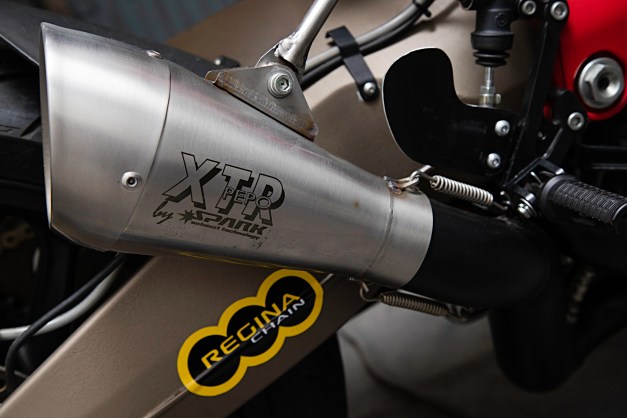

Spark megaphone



Pintumoto painting



Dante  stickers.



Pictures : Sergio Cardeña Diaz

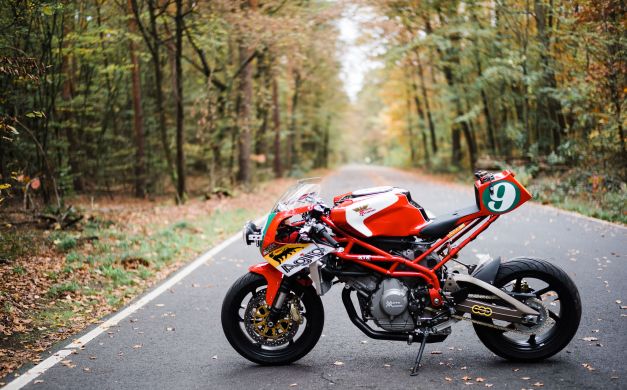

SOMEWHERE IN GERMANY …..pictures by Marc Holstein









Video of the MONZA launch in HEROS 66 bike shop in Madrid . Video by @gasogeno98  .







IL PADRINO   in  THE REUNION 2018  sprint race   .





MONZA  official pictures are coming
